MAXPRO® is the exclusive distributor of MAXIMATOR® medium-pressure products in North America. MAXIMATOR® medium-pressure fittings are engineered with a large orifice for compatibility with our 21V series medium-pressure valves and tubing. Our medium-pressure fittings have pressure ratings of up to 22,500 PSI at room temperature, threaded and coned connections, and mounting holes on all standard cross, tee, and elbow fittings.
Learn more about our medium-pressure fittings, including the types we offer and their applications.
Medium Pressure Fittings Features
All of our medium-pressure fittings come with collars and glands, but plugs and tubing caps may also be ordered individually. The collar is not necessary when using the plug. Our coned and threaded medium-pressure fittings are made from 316 stainless steel and come with a pressure rating of up to 22,500 PSI at room temperature. Outer diameter (OD) sizes include 1/4”, 3/8”, 9/16”, 3/4”, and 1”. We also carry 1-1/2” medium-pressure fittings rated for up to 15,200 PSI at room temperature.
Medium Pressure Fittings Types
MAXIMATOR® medium pressure fittings are available in several types, including:

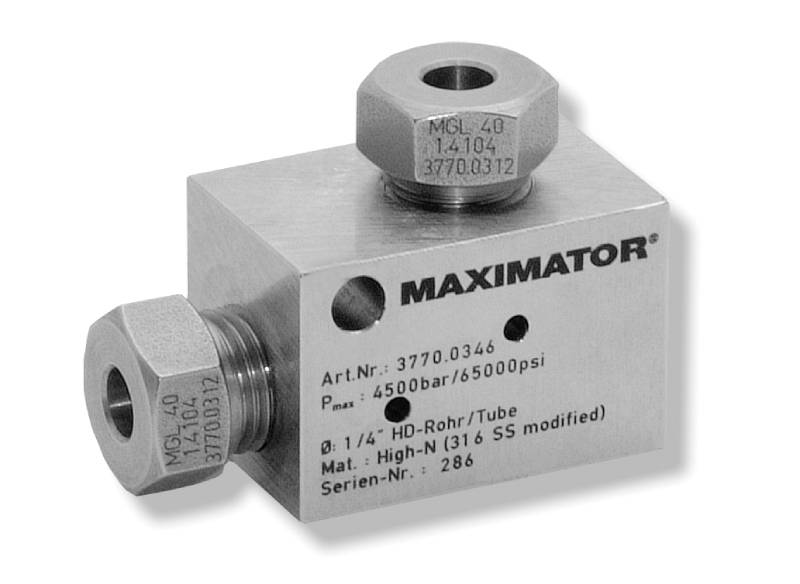

- Elbows: Elbows connect two tubing lines at a 90° angle.

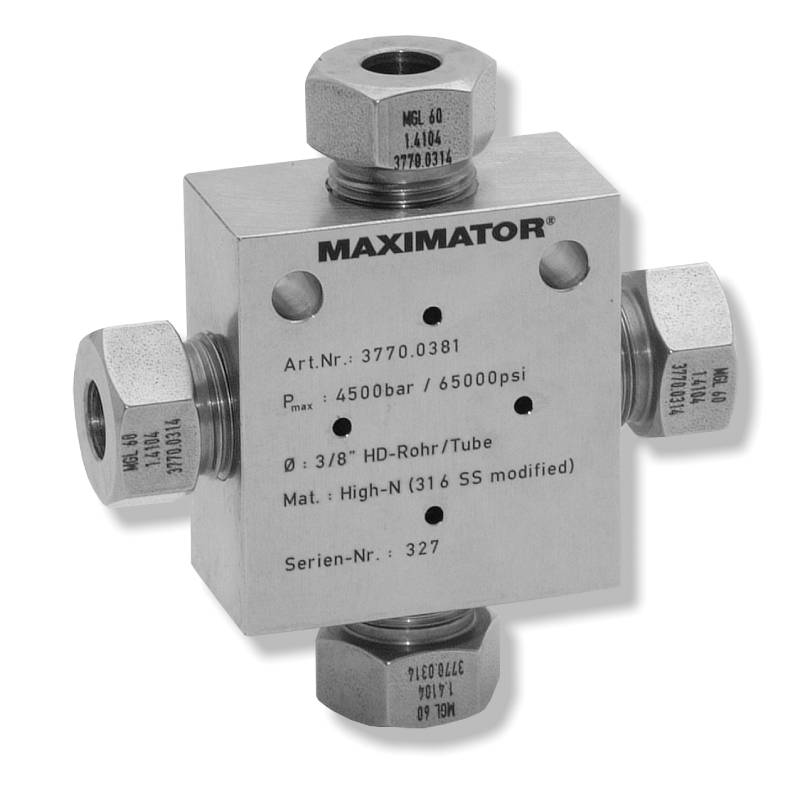

- Crosses: A cross creates a common connection between four same-size tubing lines.
- Tees: Tees add three same-size common connections to a tubing line.
- Couplings: Couplings connect two male ends of the same size or different sizes. We offer both straight couplings and bulkhead couplings.
- Adapters: Adapters connect male and female or male and male ports of various sizes.
- Anti-Vibration Collet/Gland Assemblies: These fittings reduce extreme external mechanical shock and vibration inside tubing lines.
- Nipples: This type of fitting adds two common male connections using standard-length threaded and coned tubing.
- Safety Head Assemblies: Used with 1/4” angular rupture discs, safety head fittings protect against over-pressure situations. MAXPRO® also supplies 1/4”, 3/8”, 9/16”, 3/4”, and 1” OD medium-pressure port sizes for up to 22,250 PSI and 1-1/2” medium-pressure ports for up to 15,200 PSI.
- Rupture Discs-need info
- Dual-Disc Line Filters- short blurb
- Cup-Type Line Filters-short blurb
| Tubing Size (in.) | Gland | Collar | Plug | Tubing Cap |
 |  |  |  |
|
| 1/4 | 21G4M | 21C4M | 21P4M | 21TC4M |
| 3/8 | 21G6M | 21C6M | 21P6M | 21TC6M |
| 9/16 | 21G9M | 21C9M | 21P9M | 21TC9M |
| 3/4 | 21G12M | 21C12M | 21P12M | 21TC12M |
| 1 | 21G16M | 21C16M | 21P16M | 21TC16M |
| 1-1/2 | 15G24M | 15C24M | 15P24M | 15TC24M |
Applications of Medium Pressure Fittings
Various applications rely on MAXIMATOR® medium pressure fittings, including:
- Oil and gas: Medium-pressure fittings are ideal for downhole gas and oil exploration. They also perform well in pump and valve work and offshore electrical installations.
- Chemical and petrochemical: Research, chemical, and petrochemical industries use medium-pressure fittings for fluid handling applications.
Medium Pressure Fittings From MAXPRO® Technologies
MAXIMATOR® medium-pressure fittings from MAXPRO® are designed with performance-enhancing features and high-quality 316 stainless steel construction. We offer a variety of medium-pressure fittings rated for pressures up to 22,500 PSI in a range of configurations, including elbows and tees.
MAXPRO® Technologies has been the exclusive distributor of MAXIMATOR® products since 1995, including high-pressure, ultra-high pressure, and medium-pressure equipment. When you partner with MAXPRO® for your medium-pressure fittings, you’ll benefit from:
- ISO Certification: MAXIMATOR® is an ISO 9001:2015 certified company, committed to delivering quality products.
- Superior Customer Experience: Our dedicated customer service team can help you select the ideal solution for your application or system.
- Quality Products at Affordable Prices: We offer high-quality products at competitive prices.
- Rapid Fulfillment: Our extensive inventory ensures your MAXIMATOR® products are delivered quickly, with many products eligible for same-day shipping.
- Swift Response Times: We respond to your emails and calls as promptly as possible.
Download our free brochure for more information about our MAXIMATOR® medium-pressure fittings, or request a quote for specific pricing details.
