High Pressure Air-Driven Liquid Pumps

MAXPRO® Technologies was founded in 1995 as the exclusive North American distributor of Maximator® products. Maximator® is globally recognized as an industry leader in high pressure solutions. Our expert team of engineers and customer service representatives will help you choose the best high pressure air-driven liquid pump for your application.

Maximator® air-driven piston style reciprocating pumps are a fast and effective pumping solution capable of delivering a wide range of pressures and flow rates.  Our pumps get their power from a compressed air source and combine positive displacement with the capability to hold pressure for long periods of time. A variety of material and seal options allow almost any fluid to be pressurized. Maximator® pumps are rugged and rebuildable and can tolerate all installation positions and most environments.

This page will discuss the function and advantages of these pumps and how to determine the best pump for your needs.

View Catalog   Request a Quote

How It Works – Easy Handling

Air Driven Liquid Pumps - Getting Started

Getting Started:

  • Connect supply lines
    • Compressed air, suction, and pressure lines
  • Set drive pressure
  • Open compressed air supply slowly so the pump starts

Air Driven Liquid Pumps - Building PressureBuilding Pressure:

  • The pump allows pressure to build automatically
  • Automatic cycling of spool valve using air pulses from the pilot valve
  • Suctioning of liquid
  • Because of large cross-section, favorable cycling conditions

High Pressure Guage

Maintain Pressure:

  • The pump holds pressure
  • The pump will automatically stop when pressure is achieved
  • Pressure holds without heat loss or energy consumption
  • Pump will restart automatically when pressure drops

High Pressure Air Driven Liquid Pumps Features

Our MAXPRO Technologies team will help you choose the best pump for your application.  Features include:

  • Discharge pressures between 60-101,000 psi
  • Temperature range from -20°F to 140°F
  • Drive air pressures range from 1-10 bar
  • Standard and optional seals available
  • Pilot air control for remote operation standard on many models
  • External spool valve for quick maintenance on most models
  • Dry air spool valve option available for severe service
  • Safe for hazardous areas (no electrical power required)
  • Sturdy construction materials, including aluminum, stainless steel, and cast iron
High-Pressure Air Driven Liquid Pumps GIF
  1. Air Inlet Port
  2. Air Drive Tube
  3. Drive Piston
  4. Upper Tappet Valve
  5. Pilot Air Tube
  6. Spool Valve
  7. Lower Tappet Valve
  8. Pilot Vent
  9. Outlet Muffler
  10. Inlet Check Valve
  11. Outlet Check Valve
  12. Drive Air Flow
  13. Exhaust Flow

High-Pressure, Air-Driven Liquid Pumps Benefits

  • Pressure is controlled via a manual pressure regulator or pneumatic valve
  • Suitable for use in explosion-proof areas
  • Suitable for use with most liquids or liquified gases
  • When the predetermined pressure is reached, the pump automatically stops
  • Does not use energy during the hold phase
  • Easily installed and problem-free operation
  • Required connections:  Air supply, suction and pressure lines
  • Dependable operation

High-Pressure Air-Driven Liquid Pumps Applications

Maximator® High-Pressure Air-Driven Liquid Pumps come in a variety of sizes and are useful in many industries, including oil & gas, mining, construction, aviation, aeronautics, automotive, biomedical, botanical oil extraction, alternative energy, chemical, defense, food processing, fracking, and more. Typical applications in these industries and others include:

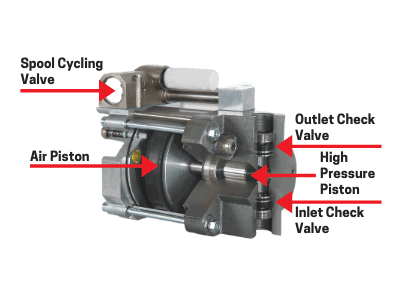

Anatomy of Air Driven Liquid Pump

Anatomy of a High-Pressure Air Driven Liquid Pump

  • Bolt tensioning
  • Calibration
  • Clamping, crimping, cutting
  • Gas storage facilities
  • Hazardous fluid pumping
  • Hydraulic and isostatic presses
  • Hydraulic cylinder actuation
  • Hydraulic power units
  • Hydrostatic testing
  • Pressure testing and proof testing
  • Refrigerant systems testing
  • Setting/testing pressure relief valves
  • Supercritical extraction for cannabis

Quality Control and Industry Standards

Maximator GmbH is quality manufacturer with ISO 9001:2015 certification.  CE Mark is available upon request. To learn more about any of our quality high-pressure air-driven liquid pumps, please contact us today.

Choose MAXPRO for Reliable High-Pressure Air-Driven Liquid Pumps

MAXPRO is the exclusive supplier of Maximator pumps in North America. At MAXPRO® Technologies, we strive to offer the highest quality solutions for any high-pressure application. For more information about our high-pressure air-driven liquid pumps or any of our other high-pressure solutions, please contact us.
