High-Pressure Air-Driven Liquid Pumps

High-Pressure Air-Driven Liquid Pumps

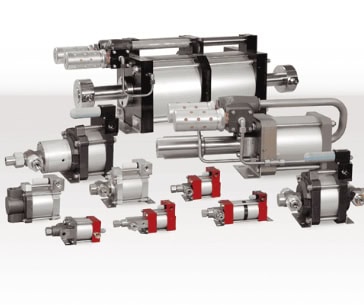

MAXPRO’s Maximator® air-driven piston-style reciprocating pumps are a fast and effective pumping solution capable of delivering a wide range of pressures and flow rates. Our pumps get their power from a compressed air source and combine positive displacement with the capability to hold pressure for long periods of time. A variety of material and seal options allow almost any fluid to be pressurized. Maximator® pumps are rugged and rebuildable and can tolerate all installation positions and most environments.

This page will discuss the function and advantages of these pumps and how to determine the best pump for your needs.

High-Pressure Air-Driven Liquid Pumps Operating Instructions

Our high-pressure pneumatic pumps are easy to operate using the following instructions.

Air Driven Liquid Pumps - Getting Started

Getting Started

  1. Connect the pneumatic pump supply lines.
  2. Connect the lines for compressed air, outlet, and inlet
  3. Configure the drive pressure.
  4. Slowly open the compressed air supply to start the pump.
Air Driven Liquid Pumps - Building Pressure

Building Pressure

  1. Pressure automatically builds within the pump.
  2. The pilot valve disperses pulses of air to automatically cycle the spool valve.
  3. The liquid suctions.
High Pressure Guage

Maintain Pressure

  1. The pump maintains stable pressure.
  2. When the desired pressure is achieved, the pump will stop automatically.
  3. Pressure is maintained without consuming energy or losing heat.
  4. When pressure drops, the pump will restart automatically.

High-Pressure Air-Driven/Pneumatic Liquid Pump Features

The MAXPRO Technologies team will help you choose the best pump for your application. Pump features include:

  • Discharge pressures between 60-101,000 psi
  • Temperature range from -20 °F to 140 °F
  • Drive air pressures range from 1-10 bar
  • Standard and optional seals available
  • Pilot air control for remote operation standard on many models
  • External spool valve for quick maintenance on most models
  • Dry air spool valve option available for severe service
  • Safe for hazardous areas (no electrical power required)
  • Sturdy construction materials, including aluminum, stainless steel, and cast iron

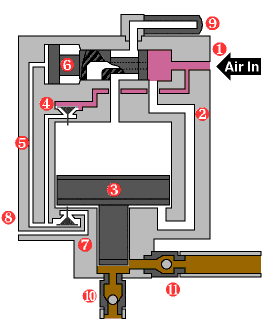

High-Pressure Air Driven Liquid Pumps GIF
  1. Air Inlet Port
  2. Air Drive Tube
  3. Drive Piston
  4. Upper Tappet Valve
  5. Pilot Air Tube
  6. Spool Valve
  7. Lower Tappet Valve
  8. Pilot Vent
  9. Outlet Muffler
  10. Inlet Check Valve
  11. Outlet Check Valve
  12. Drive Air Flow
  13. Exhaust Flow

High-Pressure Air-Driven/Pneumatic Liquid Pump Applications

Maximator® High-Pressure Air-Driven Liquid Pumps come in a variety of sizes and are useful in many industries, including oil and gas, mining, construction, aviation, aeronautics, automotive, biomedical, botanical oil extraction, alternative energy, chemical, defense, food processing, fracking, and more. Typical applications in these industries and others include:

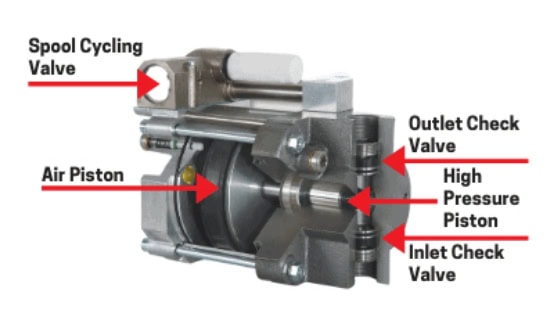

Anatomy of Air Driven Liquid Pump

Anatomy of a High-Pressure Air Driven Liquid Pump

  • Bolt tensioning
  • Calibration
  • Clamping, crimping, cutting
  • Gas storage facilities
  • Hazardous fluid pumping
  • Hydraulic and isostatic presses
  • Hydraulic cylinder actuation
  • Hydraulic power units
  • Hydrostatic testing
  • Leak testing
  • Pressure testing and proof testing
  • Refrigerant systems testing
  • Setting/testing pressure relief valves
  • Supercritical extraction for cannabis

Oil or Oil/Water Service High-Pressure Air-Driven/Pneumatic Liquid Pumps

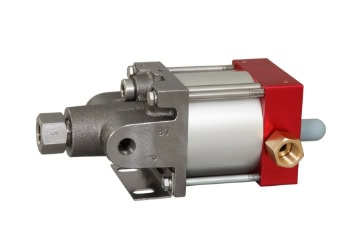

PPO Series Liquid Pumps (For Oil Only)

High-Pressure Air-Driven Liquid Pumps

MAXPRO Technologies’ PPO Series Liquid Pumps come in pressure ratings from 60 to 14,500 psi. They are rugged and lightweight, making them suitable for portable power packs, and they come in eight different pressure ratios. These pumps are single-acting, single air drive head types.

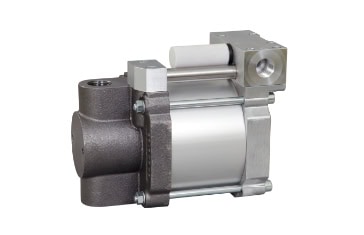

S Series Liquid Pumps (For Oil Only)

Our S Series Liquid Pumps are rated for pressures from 105 to 14,500 psi with a lightweight and compact design. They can be easily installed in stationary and portable applications and come in six pressure ratios. The S Series pump is designed to deliver quick response times in demanding applications.

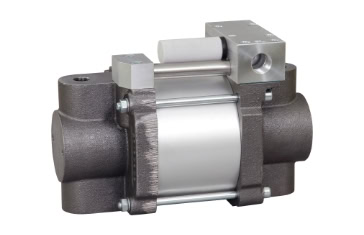

S-D Series Liquid Pumps

High-Pressure Air-Driven Liquid Pumps

Our S-D Series Liquid Pumps are lightweight and compact, with a pressure rating from 105 to 14,500 psi. They offer simple installation in portable and static applications and come in six pressure ratios. The S-D Series pumps are double-acting S Series pumps, ideal for high-flow applications.

Water or Oil Service High-Pressure Air-Driven/Pneumatic Liquid Pumps

PP Series Liquid Pumps

High-Pressure Air-Driven Liquid Pumps

MAXPRO Technologies’ PP Series Liquid Pumps are lightweight and compact pumps with rugged construction, rated for pressures between 60 and 60,000 psi. The PP Series is available in single-acting form with single, double, or triple air drive head variations, or double-acting with a single air drive head.

L Series Liquid Pumps

Our L Series Liquid Pumps are single-acting pumps with single or double air drive head types, or double-acting pumps with a single air drive head. They are rated for pressures from 165 to 101,000 psi. They have a stainless steel body, 17-4 stainless steel plungers, ultra-high molecular weight polyethylene (UHMWPE) seals, and two fluorocarbon O-rings unless otherwise noted. The L Series comes with a standard bottom inlet, and users can add -S to the catalog number for models with a side inlet. It offers air drive pressure ranges from 15 to 145 psi.

L-D Series Liquid Pumps

Our L-D Series Liquid Pumps are a double-acting version of our standard L Series pumps. The L-D Series is rated from 165 to 38,425 psi.

GX Series Liquid Pumps

High-Pressure Air-Driven Liquid Pumps

Our GX Series Liquid Pumps are rugged and easy-to-install high-flow pumps for demanding environments. Made of environmentally resistant materials, these pumps have pressure ratings from 540 to 22,500 psi. The GX Series is suitable for offshore pumping applications with corrosion-resistant external components and stainless steel wetted parts.

Chemical Service High-Pressure Air-Driven/Pneumatic Liquid Pumps

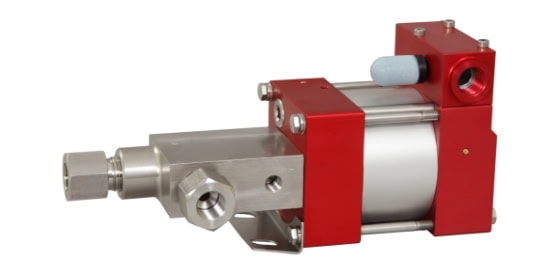

PPSF Series Liquid Pumps

High-Pressure Air-Driven Liquid Pumps

MAXPRO Technologies’ PPSF Series Liquid Pumps are rugged pumps for chemical service applications with pressure ratings from 60 to 14,500 psi. They come as single-acting pumps with single drive heads and a distance piece to separate the liquid from the air drive section of the pump.

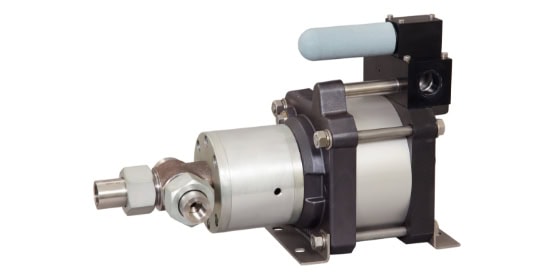

LSF Series Liquid Pumps

Our LSF Series Liquid Pumps are rugged pumps for chemical service applications with pressure ratings from 165 to 23,200 psi. They come in single-acting pump configurations with single or double air drive head types and a distance piece to separate the liquid from the air drive sections.

High-Pressure Air-Driven/Pneumatic Liquid Pumps Quality Control

Maximator GmbH is a quality manufacturer with ISO 9001:2015 certification. CE Mark is available upon request. To learn more about any of our quality high-pressure air-driven liquid pumps, please contact us today.

High-Pressure Air-Driven Liquid Pumps

Choose MAXPRO for Reliable High-Pressure Air-Driven Liquid Pumps

MAXPRO Technologies offers a wide selection of high-pressure air-driven liquid pumps for various applications. Our Maximator® pumps are easy to install, rugged, and portable, ideal for applications in the food processing, chemical processing, and defense industries. We have nearly 30 years of experience as North America’s exclusive Maximator® pump distributor, committed to delivering seamless high-pressure air-driven liquid pump solutions. Browse our selection of high-pressure air-driven liquid pumps, or request a quote to speak with a specialist about your needs.

High Pressure Air Driven Liquid Pumps Features

Our MAXPRO Technologies team will help you choose the best pump for your application.  Features include:

  • Discharge pressures between 60-101,000 psi
  • Temperature range from -20°F to 140°F
  • Drive air pressures range from 1-10 bar
  • Standard and optional seals available
  • Pilot air control for remote operation standard on many models
  • External spool valve for quick maintenance on most models
  • Dry air spool valve option available for severe service
  • Safe for hazardous areas (no electrical power required)
  • Sturdy construction materials, including aluminum, stainless steel, and cast iron
High-Pressure Air Driven Liquid Pumps GIF
  1. Air Inlet Port
  2. Air Drive Tube
  3. Drive Piston
  4. Upper Tappet Valve
  5. Pilot Air Tube
  6. Spool Valve
  7. Lower Tappet Valve
  8. Pilot Vent
  9. Outlet Muffler
  10. Inlet Check Valve
  11. Outlet Check Valve
  12. Drive Air Flow
  13. Exhaust Flow

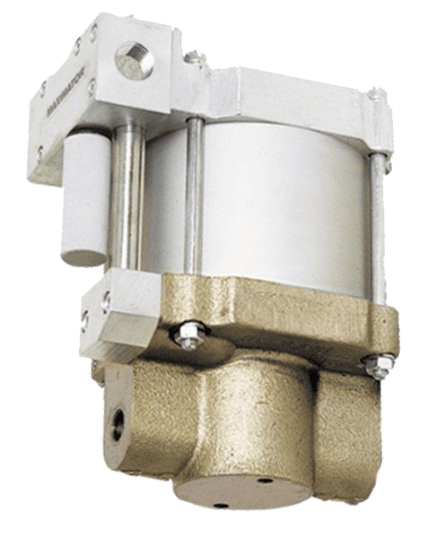

High-Pressure, Air-Driven Liquid Pumps Benefits

  • Pressure is controlled via a manual pressure regulator or pneumatic valve
  • Suitable for use in explosion-proof areas
  • Suitable for use with most liquids or liquified gases
  • When the predetermined pressure is reached, the pump automatically stops
  • Does not use energy during the hold phase
  • Easily installed and problem-free operation
  • Required connections:  Air supply, suction and pressure lines
  • Dependable operation

High-Pressure Air-Driven Liquid Pumps Applications

Maximator® High-Pressure Air-Driven Liquid Pumps come in a variety of sizes and are useful in many industries, including oil & gas, mining, construction, aviation, aeronautics, automotive, biomedical, botanical oil extraction, alternative energy, chemical, defense, food processing, fracking, and more. Typical applications in these industries and others include:

Anatomy of Air Driven Liquid Pump

Anatomy of a High-Pressure Air Driven Liquid Pump

  • Bolt tensioning
  • Calibration
  • Clamping, crimping, cutting
  • Gas storage facilities
  • Hazardous fluid pumping
  • Hydraulic and isostatic presses
  • Hydraulic cylinder actuation
  • Hydraulic power units
  • Hydrostatic testing
  • Pressure testing and proof testing
  • Refrigerant systems testing
  • Setting/testing pressure relief valves
  • Supercritical extraction for cannabis

Quality Control and Industry Standards

Maximator GmbH is quality manufacturer with ISO 9001:2015 certification.  CE Mark is available upon request. To learn more about any of our quality high-pressure air-driven liquid pumps, please contact us today.

Choose MAXPRO for Reliable High-Pressure Air-Driven Liquid Pumps

MAXPRO is the exclusive supplier of Maximator pumps in North America. At MAXPRO® Technologies, we strive to offer the highest quality solutions for any high-pressure application. For more information about our high-pressure air-driven liquid pumps or any of our other high-pressure solutions, please contact us.
