High Pressure Fittings

High Pressure FittingsIn 1995, MAXPRO® Technologies Inc. was established as the exclusive distributor for Maximator® products in North America. As a globally recognized industry leader in high pressure solutions, Maximator manufactures components and systems with uses in a wide range of high-pressure applications. Our expert team of engineers and customer service representatives will gladly help you select the best products for your application.

At MAXPRO, we stock a wide range of high-pressure fittings for same day or next day shipment. These fittings are essential to complete high-pressure gas and liquid systems as highly reliable and safe engineered components. The integrity of any system is only as good as the weakest components. Maximator fittings, along with Maxpro application engineering assistance, will ensure that selection of the correct fittings will maintain the pressure, flow and duty requirements demanded by your entire system.

View Catalog Request a Quote

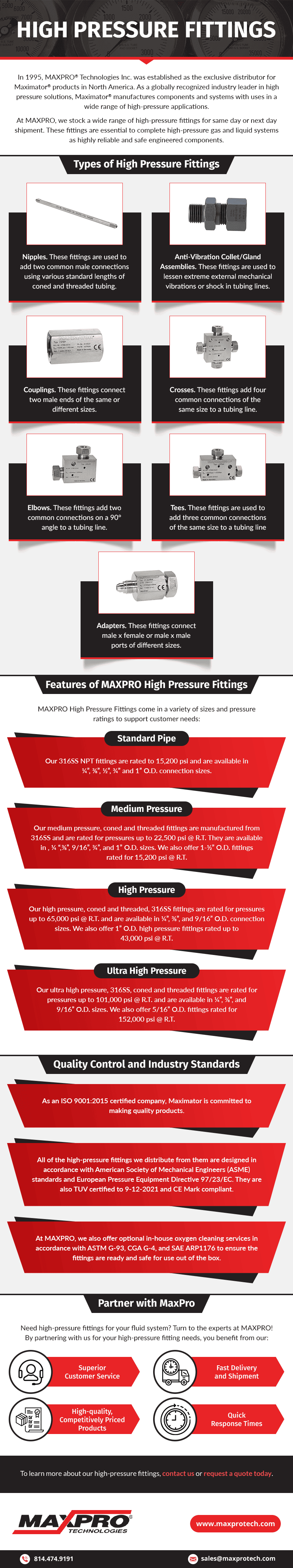

Types of High Pressure Fittings

MAXPRO’s high pressure fitting selection includes:

  • Adapters. These fittings are used to connect male x female or male x male ports of different sizes.
  • Anti-Vibration Collet/Gland Assemblies. These fittings used to lessen extreme external mechanical vibrations or shock in tubing lines.
  • Couplings. These fittings are used to connect two male ends of the same or different sizes.
  • Crosses. These fittings are used to add four common connections of the same size to a tubing line.
  • Elbows. These fittings are used to add two common connections on a 90° angle to a tubing line.
  • Nipples. These fittings are used to add two common male connections using various standard lengths of coned and threaded tubing.
  • Safety Head Assemblies. These fittings provide over-pressure protection and are used with ¼” angular rupture discs. Safety Head Assemblies are available in ¼”, ⅜” and 9/16” O.D. high pressure port sizes and are rated for 65,000 psi @ R.T. We also offer 1” O.D high pressure safety heads rated for 43,000 psi @ R.T. We also offer ¼”, ⅜”, 9/16”, ¾”, and 1” O.D. medium pressure port sizes rated for 22,500 psi and a 1-½” O.D. medium pressure port size rated for 15,200 psi
  • Tees. These fittings are used to add three common connections of the same size to a tubing line

Features of MAXPRO High Pressure Fittings

MAXPRO High Pressure Fittings come in a variety of sizes and pressure ratings to support customer needs:

  • Standard Pipe
    Our 316SS NPT fittings are rated to 15,200 psi and are available in ¼”, ⅜”, ½”, ¾” and 1” O.D. connection sizes.
  • Medium Pressure
    Our medium pressure, coned and threaded fittings are manufactured from 316SS and are rated for pressures up to 22,500 psi @ R.T. They are available in , ¼ “,⅜”, 9/16”, ¾”, and 1” O.D. sizes. We also offer 1-½” O.D. fittings rated for 15,200 psi @ R.T.
  • High Pressure
    Our high pressure, coned and threaded, 316SS fittings are rated for pressures up to 65,000 psi @ R.T. and are available in ¼”, ⅜”, and 9/16” O.D. connection sizes. We also offer 1” O.D. high pressure fittings rated up to 43,000 psi @ R.T.
  • Ultra High Pressure
    Our ultra high pressure, 316SS, coned and threaded fittings are rated for pressures up to 101,000 psi @ R.T. and are available in ¼”, ⅜”, and 9/16” O.D. sizes. We also offer 5/16” O.D. fittings rated for 152,000 psi @ R.T.



Applications of High Pressure Fittings

Click to Expand

High Pressure Fittings

High pressure fittings are suitable for use in many fluid applications. Typical equipment and systems in which they are found include:

  • Oil and gas control panels and skids
  • Chemical injection skids
  • Hydraulic power units
  • Waterjet cleaning and cutting units

Quality Control and Industry Standards for MAXPRO High-Pressure Fittings

As an ISO 9001:2015 certified company, Maximator is committed to making quality products. All of the high-pressure fittings we distribute from them are designed in accordance with American Society of Mechanical Engineers (ASME) standards and European Pressure Equipment Directive 97/23/EC. They are also TUV certified to 9-12-2021 and CE Mark compliant.

At MAXPRO, we also offer optional in-house oxygen cleaning services in accordance with ASTM G-93, CGA G-4, and SAE ARP1176 to ensure the fittings are ready and safe for use out of the box.

Partner With MAXPRO for Your High-Pressure Fittings Needs Today

Need high-pressure fittings for your fluid system? Turn to the experts at MAXPRO! By partnering with us for your high-pressure fitting needs, you benefit from our:

  • Superior customer service. Our experts are committed to helping you find the right solution for your system and application.
  • High-quality, competitively priced products. We provide quality products at affordable prices.
  • Fast delivery and shipment. We maintain an inventory of Maximator products so we can quickly ship out most orders. Same-day shipment is also available.
  • Quick response times. Our team responds to all calls and emails in a timely manner.

To learn more about our high-pressure fittings, contact us or request a quote today.
